UV Printer with Single, Dual, Triple, or Quad Print Heads
UV Printer with Single, Dual, Triple, or Quad Print Heads
High-Precision UV Printing for Diverse Applications
Model: SS-U301, SS-U302, SS-U303, SS-U304

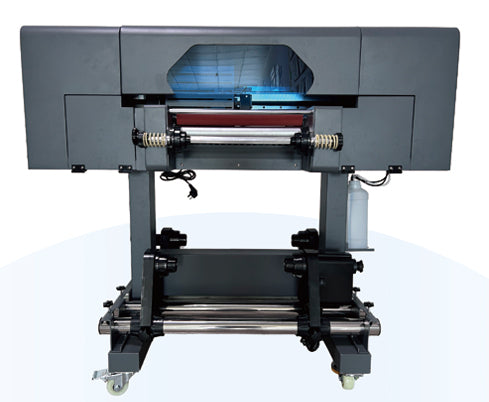

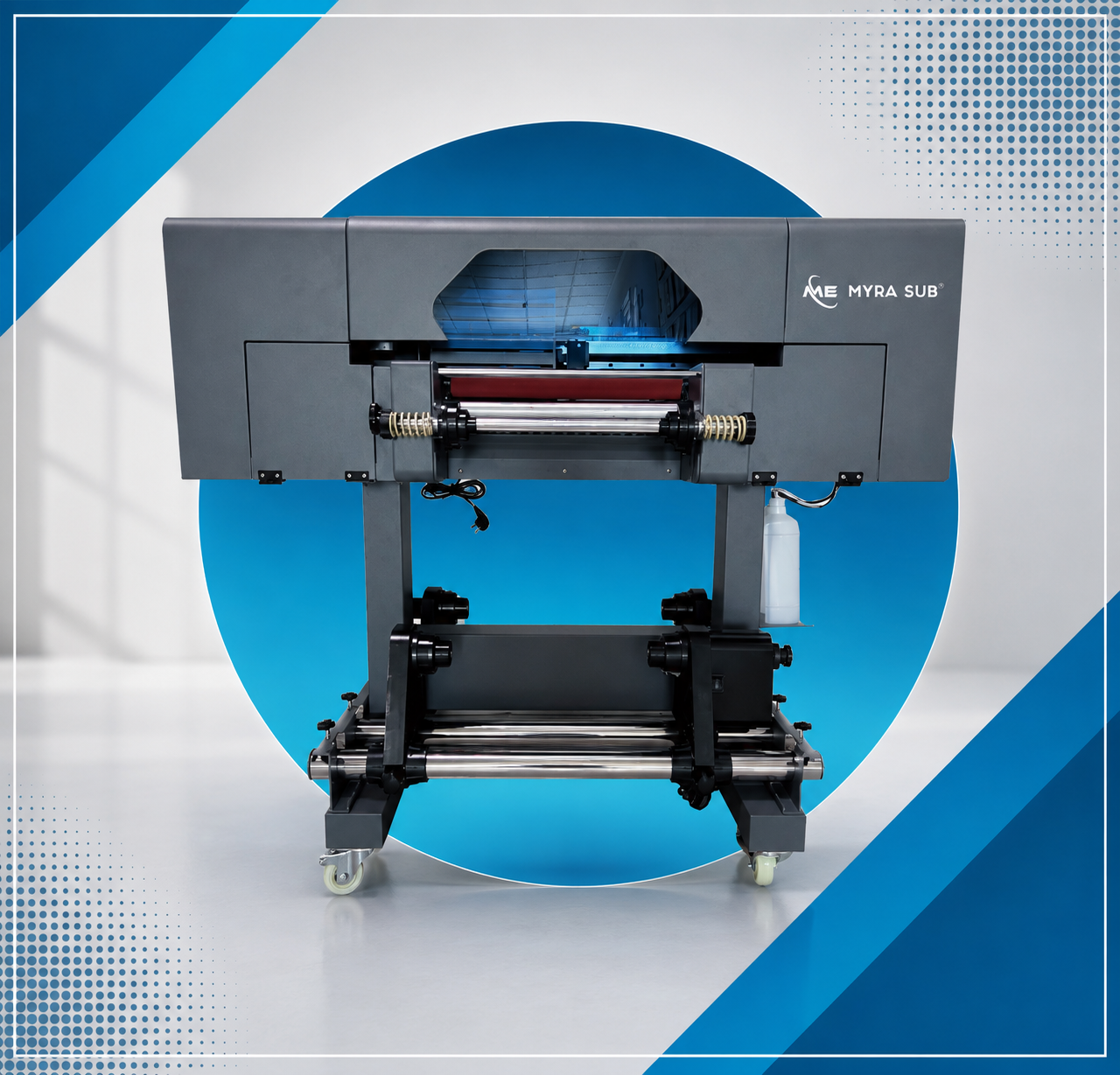

The 300mm UV Printer is a versatile and high-performance digital printing solution designed for businesses seeking exceptional print quality on a wide range of materials. Available with Single, Dual, Triple, or Quad Print Head configurations, this printer delivers outstanding speed, accuracy, and vibrant color output for industrial and commercial printing applications.
Built with advanced UV curing technology, the printer can directly print on flat and rigid surfaces including acrylic, glass, wood, metal, leather, PVC, plastic, ceramic, mobile covers, promotional items, and customized gifts. Its compact design, reliable operation, and scalable print head options make it ideal for startups, print shops, signage manufacturers, and industrial production units.
| Model | MS-U301 |
| Print Height | 1.5-8mm |
| Print Heads | 1 heads |
| Power | 220V/110V |
| Environment | Temperature: 20°C -35°C Humidity : 35%RH-65%RH |
| Requirement | AC 220V 50HZ/60HZ Printing: 100W Heating:140W uv lamp : 60w |
| Print Width | 330mm |
| Ink Capacity | 550ml |
| Printer Size | 1262mm*779mm*1190mm 120kg |
| Packing Size | 1420mm*1050mm*720mm 140kg |
| Ink Type | UV Ink |
Product Features
Product Features
Specifications
- Model: SS-U301, SS-U302, SS-U303, SS-U304
- Printing Speed:
- i3200: 0.8 m²/h at 8pass; 0.5 m²/h at 12pass
- i1600: 1.7 m²/h, 3.3 m²/h, 3.3 m²/h at 8pass; 1 m²/h, 2.2 m²/h, 2.2 m²/h at 12pass - Media Width: 330 mm
- Compatible Media: UV-specific AB film
- Ink Type: UV ink
- Print Head Model: i3200 / i1600
- Print Head Quantity: 1, 2, 3, 4 heads
- Machine Size: 1262 × 779 × 1190 mm
- Machine Weight: 120 kg
- Packing Size: 1420 × 1050 × 720 mm
- Machine Weight (Packing Included): 140 kg
Key Features
- Available in Single, Dual, Triple, and Quad Print Head configurations
- High-resolution UV printing with sharp details and vibrant colors
- Direct printing on multiple materials and substrates
- Automatic UV LED curing system
- White ink and varnish printing support
- High-speed production with stable performance
- User-friendly software and control system
- Compact design suitable for commercial and industrial use
- Low maintenance and energy-efficient operation
- Excellent adhesion and scratch-resistant output
